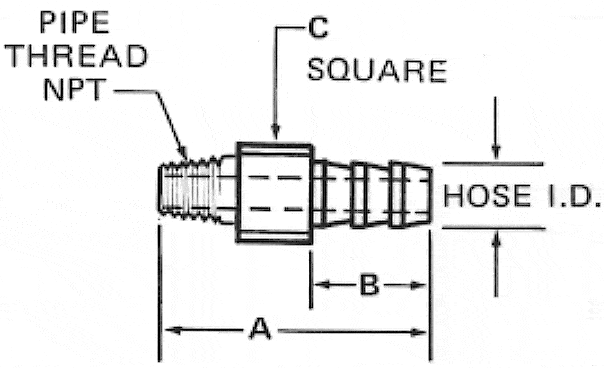

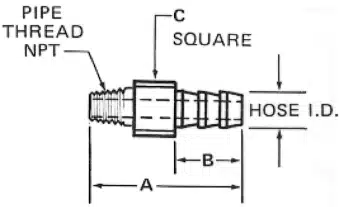

48 – Male Hose Connector
| 48 – Male Hose Connector | |||||
|
PART NO.
|
HOSE I.D.
|
NPT THREAD
|
“A”
|
“B”
|
SQUARE “C”
|
| 48F22 |
1/8″
|
1/8″
|
1.27″
|
.45″
|
7/16″
|
| 48F32 |
3/16
|
1/8
|
1.32
|
.50
|
7/16
|
| 48F42 |
1/4
|
1/8
|
1.37
|
.55
|
7/16
|
| 48F44 |
1/4
|
1/4
|
1.47
|
.55
|
9/16
|
| 48F54 |
5/16
|
1/4
|
1.54
|
.62
|
9/16
|
| 48F64 |
3/8
|
1/4
|
1.62
|
.70
|
9/16
|
| 48F66 |
3/8
|
3/8
|
1.73
|
.70
|
11/16
|
|
48F86
|
1/2
|
3/8
|
1.78
|
.75
|
11/16
|
|
48F68
|
3/8
|
1/2
|
1.98
|
.70
|
7/8
|
|
48F88
|
1/2
|
1/2
|
2.03
|
.75
|
7/8
|
|
48F812
|
1/2
|
3/4
|
2.13
|
.75
|
1-1/16
|
|
48F1212
|
3/4
|
3/4
|
2.23
|
.85
|
1-1/16
|
|
48F1216
|
3/4
|
1
|
2.41
|
.85
|
1-3/8
|
|
48F1616
|
1
|
1
|
2.55
|
1.00
|
1-3/8
|
