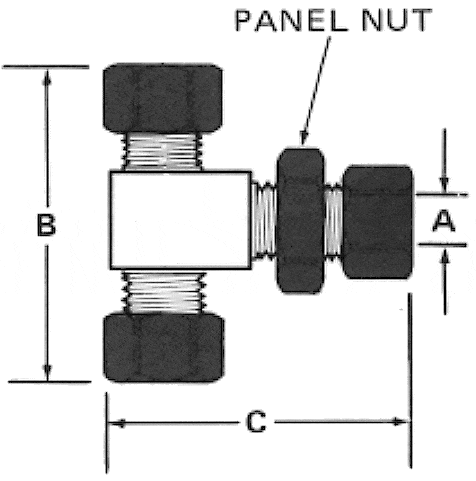

Bulkhead Tee Union

FRACTIONAL

PART
NO.

TUBE
O.D.
“A” (Typ.)

“B”

“C”

PANEL
HOLE
DIA.

20F2

1/8″

1.50″

1.62″

21/64″

20F3

3/16

1.50

1.62

25/64

20F4

1/4

1.80

1.76

29/64

20F5

5/16

1.87

1.95

33/64

20F6

3/8

2.19

2.28

21/32

20F8

1/2

2.45

2.32

25/32

20F10

5/8

3.20

2.80

1-1/32

20F12

3/4

3.90

3.30

1-9/32

20F16

1

4.12

3.50

1-9/16

PART
NO.

TUBE
O.D.
“A” (Typ.)

“B”

“C”

PANEL
HOLE
DIA.

20M3

3mm

38mm

41mm

8.5mm

20M4

4

38

41

10.5

20M6

6

46

45

12

20M8

8

47

50

13.5

20M10

10

56

58

16.5

20M12

12

62

59

20

20M14

14

73

66

23

20M19

19

99

84

32

20M26

26

105

89

39
