14 – Elbow Female Connector

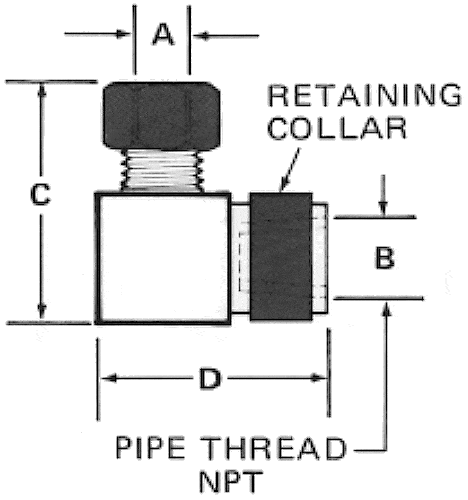

Elbow Female Connector

FRACTIONAL

PART NO.

TUBE O.D. “A”

PIPE THREAD “B”

“C”

“D”

14F22

1/8″

1/8″

1.15″

1.00″

14F32

3/16

1/8

1.15

1.00

14F42

1/4

1/8

1.27

1.00

14F52

5/16

1/8

1.27

1.00

14F44

1/4

1/4

1.42

1.25

14F54

5/16

1/4

1.42

1.25

14F64

3/8

1/4

1.52

1.25

14F66

3/8

3/8

1.77

1.50

14F86

1/2

3/8

1.85

1.50

14F88

1/2

1/2

2.10

1.90

14F1212

3/4

3/4

2.67

2.03

14F1616

1

1

3.05

2.50

METRIC

PART NO.

TUBE O.D. “A”

PIPE THREAD “B”

“C”

“D”

14M32

3mm

1/8″

29mm

25mm

14M42

4

1/8

29

25

14M62

6

1/8

32

25

14M82

8

1/8

32

25

14M64

6

1/4

36

32

14M84

8

1/4

36

32

14M104

10

1/4

39

32

14M106

10

3/8

45

38

14M126

12

3/8

47

38

14M128

12

1/2

53

48

14M1912

19

3/4

68

51

14M2616

26

1

77

64
