11 – Straight Male Connector

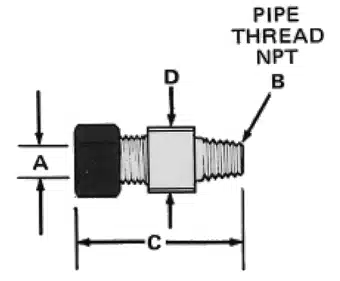

Straight Male Connector

FRACTIONAL
PART
NO.

TUBE
O.D.
“A”
PIPE
THREAD
NPT
“B”
“C”
SQUARE “D”

11F22

1/8″

1/8″

1.22″

7/16″

11F32

3/16

1/8

1.22

7/16

11F42

1/4

1/8

1.50

1/2

11F52

5/16

1/8

1.50

1/2

11F44

1/4

1/4

1.60

9/16

11F54

5/16

1/4

1.60

9/16

11F64

3/8

1/4

1.70

5/8

11F66

3/8

3/8

1.80

3/4

11F68
3/8
1/2
1.87
7/8
11F84
1/2
1/4
1.80
3/4

11F86

1/2

3/8

1.87

3/4

11F88

1/2

1/2

2.03

7/8

11F128
3/4
1/2
2.50
1

11F1212

3/4

3/4

2.67

1-1/4

11F1616

1

1

2.87

1-1/2

METRIC

PART
NO.

TUBE
O.D.
“A”

PIPE
THREAD
NPT
“B”

“C”

SQUARE
“D”

11M32

3mm

1/8″

31mm

11mm

11M42

4

1/8

31

11

11M62

6

1/8

38

13

11M82

8

1/8

38

13

11M64

6

1/4

41

14

11M84

8

1/4

41

14

11M104

10

1/4

43

16

11M106

10

3/8

46

19

11M126

12

3/8

47

19

11M128

12

1/2

52

22

11M1912

19

3/4

68

32

11M2616

26

1

73

38
