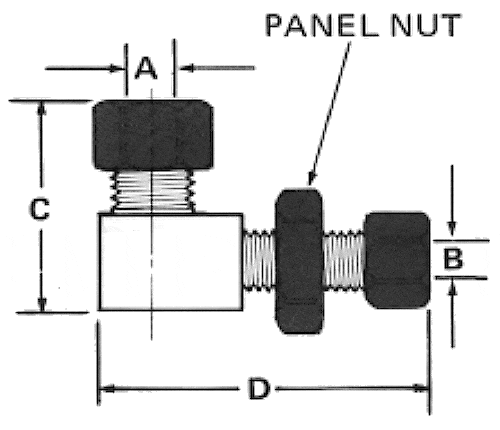

10 – Bulkhead Elbow Reducer Union
|
FRACTIONAL
|
|||||
|
PART
NO. |
TUBE O.D.
|
“C”
|
“D”
|
PANEL
HOLE DIA. |
|
|
“A”
|
“B”
|
||||
|
10F42
|
1/4″
|
1/8″
|
1.14″
|
1.62″
|
21/64″
|
|
10F43
|
1/4
|
3/16
|
1.14
|
1.62
|
25/64
|
|
10F54
|
5/16
|
1/4
|
1.23
|
1.90
|
29/64
|
|
10F64
|
3/8
|
1/4
|
1.30
|
2.04
|
29/64
|
|
10F65
|
3/8
|
5/16
|
1.30
|
2.04
|
33/64
|
|
10F84
|
1/2
|
1/4
|
1.60
|
2.17
|
29/64
|
|
10F85
|
1/2
|
5/16
|
1.60
|
2.17
|
33/64
|
|
10F86
|
1/2
|
3/8
|
1.60
|
2.28
|
21/32
|
|
10F108
|
5/8
|
1/2
|
2.12
|
2.60
|
25/32
|
|
10F1210
|
3/4
|
5/8
|
2.50
|
3.10
|
1-1/32
|
|
10F1612
|
1
|
3/4
|
2.80
|
3.50
|
1-9/32
|
|
METRIC
|
|||||
|
PART
NO.
|
TUBE O.D.
|
“C”
|
“D”
|
PANEL
HOLE DIA. |
|
|
“A”
|
“B”
|
||||
|
10M63
|
6mm
|
3mm
|
29mm
|
41mm
|
8.5mm
|
|
10M64
|
6
|
4
|
29
|
41
|
10.5
|
|
10M86
|
8
|
6
|
31
|
48
|
12
|
|
10M106
|
10
|
6
|
33
|
52
|
12
|
|
10M108
|
10
|
8
|
33
|
52
|
13.5
|
|
10M126
|
12
|
6
|
41
|
55
|
12
|
|
10M128
|
12
|
8
|
41
|
55
|
13.5
|
|
10M1210
|
12
|
10
|
41
|
61
|
16.5
|
|
10M1912
|
19
|
12
|
64
|
73
|
26
|
|
10M2619
|
26
|
19
|
71
|
89
|
32.5
|
