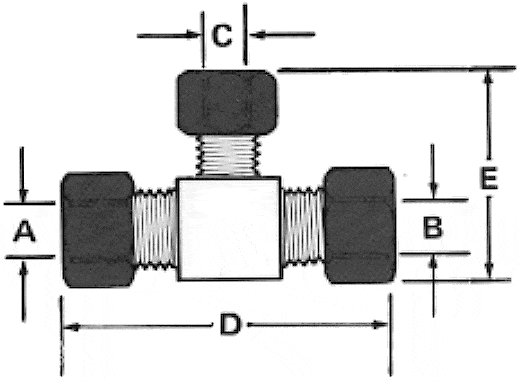

19 – Tee Union Reducer

Tee Union Reducer

FRACTIONAL

PART NO.

TUBE O.D.

“D”

“E”

“A”

“B”

“C”
19F422
1/4″
1/8″
1/8″
1.69″
1.02″
19F424
1/4
1/8
1/4
1.69
1.14
19F442
1/4
1/4
1/8
1.80
1.02
19F446
1/4
1/4
3/8
2 1/4
1 5/8
19F544
5/16
1/4
1/4
1.87
1.20
19F545
5/16
1/4
5/16
1.87
1.20
19F554
5/16
5/16
1/4
1.87
1.20
19F644
3/8
1/4
1/4
1.94
1.34
19F646
3/8
1/4
3/8
2.12
1.44
19F664
3/8
3/8
1/4
2.04
1.34
19F844
1/2
1/4
1/4
2.02
1.44
19F848
1/2
1/4
1/8
2.29
1.62
19F884
1/2
1/2
1/4
2.20
1.44
19F10610
5/8
3/8
5/8
2.89
2.12
19F10106
5/8
5/8
3/8
3.00
1.79
19F1088
5/8
1/2
1/2
2.72
1.87
19F10810
5/8
1/2
5/8
2.97
2.12
19F10108
5/8
5/8
1/2
3.20
1.87
19F1288
3/4
1/2
1/2
2.92
2.12
19F12812
3/4
1/2
3/4
3.42
2.57
19F12128
3/4
3/4
1/2
3.60
2.12
19F161212
1
3/4
3/4
3.87
2.82
19F161216
1
3/4
1
3.85
2.82
19F161612
1
1
3/4
3.85
2.82
METRIC

PART NO.

TUBE O.D.

“D”

“E”

“A”

“B”

“C”

19M633
6mm
3mm
3mm
43mm
26mm
19M636
6
3
6
43
29
19M663
6
6
3
46
26
19M866
8
6
6
47
30
19M868
8
6
8
47
30
19M886
8
8
6
47
30
19M1066
10
6
6
49
34
19M10610
10
6
10
54
37
19M10106
10
10
6
52
34
19M1266
12
6
6
51
37
19M12612
12
6
12
58
41
19M121010
12
10
10
58
39
19M121012
12
10
12
59
41
19M12126
12
12
6
56
37
19M121210
12
12
10
60
39
19M141214
14
12
14
72
48
19M141412
14
14
12
70
47
19M191212
19
12
12
74
54
19M191219
19
12
19
87
65
19M191912
19
19
12
91
54
19M261919
26
19
19
98
72
19M261926
26
19
26
105
71
19M262619
26
26
19
98
71
19 Series: Special Compression Fittings With Straight Stub

A
B (Straight Stub)
C
D
E
19OD6F22
1/8″
3/8″ Dia
1/8″
1 5/8″
1″
19OD6F42
1/4″
3/8″ Dia
1/8″
1 7/8″
1″
