18 – Male Branch Tee

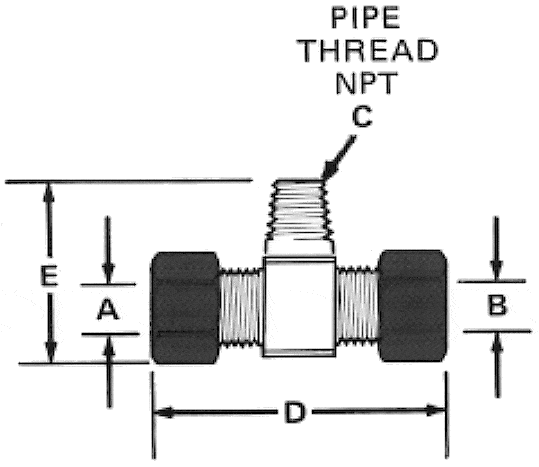

Male Branch Tee

FRACTIONAL

PART NO.

TUBE O.D.
“A” & “B”

PIPE THREAD
NPT “C”

“D”

“E”

18F222

1/8″

1/8″

1.57″

.95″

18F332

3/16

1/8

1.57

.95

18F442

1/4

1/8

1.81

.95

18F444

1/4

1/4

1.89

1.04

18F554

5/16

1/4

1.89

1.15

18F664

3/8

1/4

2.21

1.37

18F666

3/8

3/8

2.21

1.47

18F886

1/2

3/8

2.47

1.55

18F888

1/2

1/2

2.57

1.62

18F121212

3/4

3/4

3.70

2.27

18F161616

1

1

3.95

2.42

METRIC

PART NO.

TUBE O.D.
“A” & “B”

PIPE THREAD
NPT “C”

“D”

“E”

18M332

3mm

1/8″

40mm

24mm

18M442

4

1/8

40

24

18M662

6

1/8

46

24

18M664

6

1/4

48

26

18M884

8

1/4

48

29

18M10104

10

1/4

56

35

18M10106

10

3/8

56

37

18M12126

12

3/8

63

39

18M12128

12

1/2

65

41

18M191912

19

3/4

94

57

18M262616

26

1

100

67
