17 – Female Branch Tee

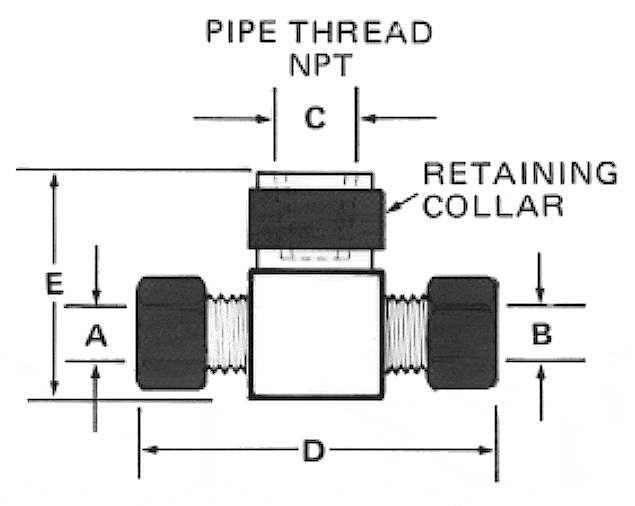

Female Branch Tee

FRACTIONAL

PART NO.

TUBE
O.D.
“A” & “B”

PIPE
THREAD
NPT
“C”

“D”

“E”

17F222

1/8″

1/8″

1.72″

.84″

17F332

3/16

1/8

1.72

.84

17F442

1/4

1/8

1.96

.84

17F444

1/4

1/4

2.09

1.00

17F554

5/16

1/4

2.09

1.05

17F664

3/8

1/4

2.29

1.17

17F666

3/8

3/8

2.54

1.17

17F886

1/2

3/8

2.7

1.25

17F888

1/2

1/2

2.95

1.40

17F121212

3/4

3/4

3.97

1.92

17F161616

1

1

4.35

2.30

METRIC

PART NO.

TUBE
O.D.
“A” & “B”

PIPE
THREAD
NPT
“C”

“D”

“E”

17M332

3mm

1/8″

44mm

21mm

17M442

4

1/8

44

21

17M662

6

1/8

50

21

17M664

6

1/4

53

25

17M884

8

1/4

53

27

17M10104

10

1/4

58

30

17M10106

10

3/8

65

30

17M12126

12

3/8

69

32

17M12128

12

1/2

75

36

17M191912

19

1/2

98

48

17M262616

26

1

110

63
