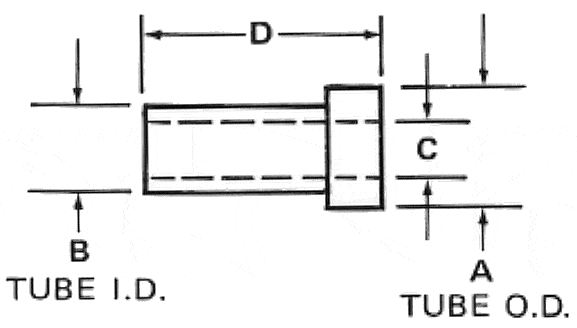

31 – Insert (PTFE)
|
31 Series: Fractional |
||||
|
PART |
TUBE O.D. |
TUBE I.D. |
“C” |
“D” |
|
31F4 |
1/4″ |
3/16″ |
.125″ |
.62″ |
|
31F5 |
5/16 |
1/4 |
.187 |
.62 |
|
31F6 |
3/8 |
5/16 |
.250 |
.62 |
|
31F8 |
1/2 |
7/16 |
.350 |
.62 |
|
31F10 |
5/8 |
9/16 |
.450 |
.75 |
|
31F12 |
3/4 |
11/16 |
.560 |
.75 |
|
31F16 |
1 |
7/8 |
.680 |
.75 |
* Recommended when using PTFE Tubing with 1/32″ wall thickness. (except 1/8 “O.D. Tubing”)
