1000 – Fitting Nut (Ryton R-4)

Fitting Nut

NO.
TUBE SIZE O.D.

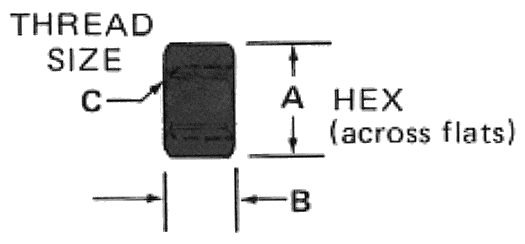

HEX
“A”

“B”
“C”

FRACTIONAL



METRIC

1002

1/8″
3mm
7/16″
.40″
5/16″-24

1003A

4
1/2
.44
3/8″-24

1003

3/16
1/2
.44
3/8″-24

1004

1/4
6
9/16
.46
7/16″-20

1005

5/16
8
5/8
.48
1/2″-20

1006

3/8
10
3/4
.56
5/8″-18

1008

1/2
12
7/8
.60
3/4″-16

1009

9/16
14
1
.74
7/8″-14

1010

5/8
16
1-1/8
.85
1″-14

1012

3/4
19
1-3/8
1.0
1-1/4″-12

1016

1
26
1-5/8
1.0
1-1/2″-12
