How to Order Plasmatech PTFE Fittings

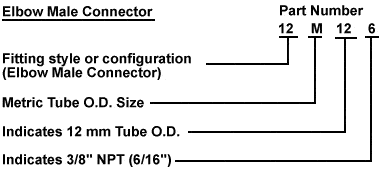

Select fittings from this catalog using dimensional data and respective Part Numbers. All Plasmatech fittings are identified for style and configuration by the first two digits in the Part Number followed by the letter ” F” for fractional tube O.D. or letter “M” for metric tube O.D. , then followed by numbers indicating tube O.D. or NPT sizes.

Examples:

How to Order Plasmatech PTFE Fittings

How to Order Plasmatech PTFE Fittings

Tees And Crosses: Tees are described by first sizing the runs (1 to 2) and then the branch (3). Crosses are described by first sizing the runs (1 to 2) and then the branches (3 to 4). How to Order Plasmatech PTFE Fittings Tees And Crosses

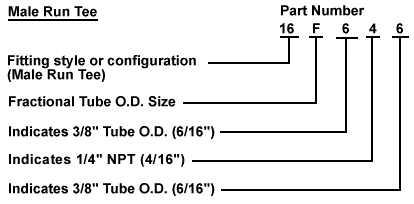

Example: Male Run Tee, Fractional-Part No. 16F646: 3/8″ tube O.D. at 1, 1/4″ male NPT at 2, and 3/8″ tube O.D. at 3.

For Styles and Sizes Not Shown.

Plasmatech is ready to assist in answering unique and difficult media handling requirements. Whether your particular requirement calls for modification of a standard Plasmatech fitting or a new design, call Plasmatech or contact your representative.

All specifications are subject to change without notice.

Wrenches For Nuts and Fittings:

Plasmatech produces a series of convenient plastic wrenches for use with fittings and nuts.

PTFE Tubing and PTFE Pipe:

Consult Plasmatech South El Monte plant.

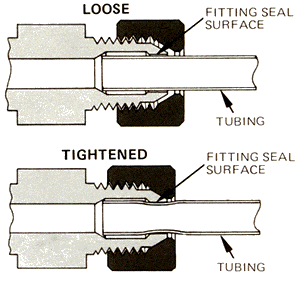

Assembly Instructions For Plasmatech Tube FittingsAssembly Instructions For Plasmatech Tube Fittings:

Plasmatech fittings are shipped fully assembled, hand tight. They can be used with PTFE, glass, quartz or metal tubing. Tubing ends should be free of burrs and sharp edges to avoid damage to PTFE surfaces.

  1. Loosen nut one (1) turn.
  2. Insert tubing and tighten nut until fitting seal surface and tubing make contact, now torque nut an additional 1/4 turn (90º) to complete assembly.

Please note that flexible plastic tubing may require 1/4 to 1/2 turn to tighten nuts.

Use care not to over-torque nuts or damage to fitting may occur.
