07 – Straight Bulkhead Union

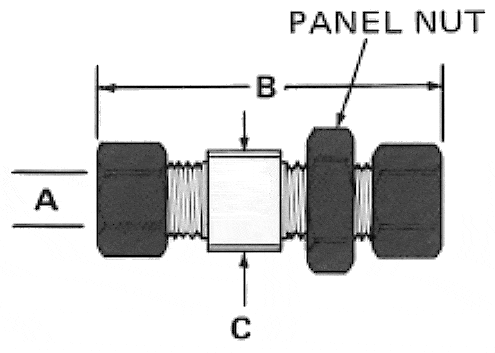

Straight Bulkhead Union

FRACTIONAL

PART
NO.

TUBE O.D.
“A” (Typ.)

“B”

SQUARE
“C”

PANEL
HOLE
DIA.

07F2

1/8″

1.95″

7/16″

21/64″

07F3

3/16

1.95

1/2

25/64

07F4

1/4

2.23

9/16

29/64

07F5

5/16

2.23

5/8

33/64

07F6

3/8

2.45

3/4

21/32

07F8

1/2

2.52

7/8

25/32

07F10

5/8

3.10

1-1/8

1-1/32

07F12

3/4

3.50

1-3/8

1-9/32

07F16

1

3.50

1-5/8

1-9/16

METRIC

PART
NO.

TUBE O.D.
“A”(Typ.)

“B”

SQUARE
“C”

PANEL
HOLE
DIA.

07M3

3mm

50mm

11mm

8.5mm

07M4

4

50

13

10.5

07M6

6

57

14

12

07M8

8

57

16

13.5

07M10

10

62

19

16.5

07M12

12

64

22

20

07M14

14

74

26

23

07M19

19

89

35

32.5

07M26

26

89

41

39.5
