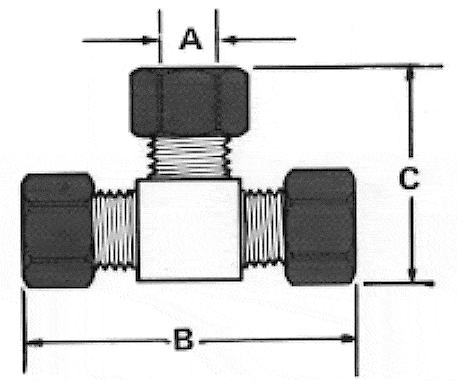

Tee Union

PART
NO.

TUBE O.D.
“A” (Typ.)

“B”

“C”

05F2

1/8″

1.50″

.95″

05F3

3/16

1.50

.95

05F4

1/4

1.80

1.14

05F5

5/16

1.87

1.20

05F6

3/8

2.19

1.44

05F8

1/2

2.45

1.60

05F10

5/8

3.20

2.10

05F12

3/4

3.90

2.55

05F16

1

4.12

2.82

PART
NO.

TUBE O.D.
“A” (Typ.)

“B”

“C”

05M3

3mm

38mm

27mm

05M4

4

38

27

05M6

6

46

29

05M8

8

47

30

05M10

10

56

37

05M12

12

62

40

05M14

14

73

48

05M19

19

98

65

05M26

26

104

71
