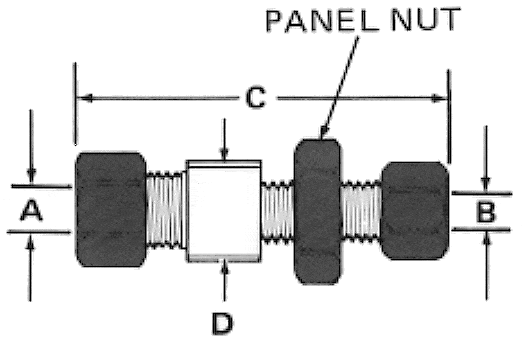

08 – Straight Bulkhead Reducer Union
|
Fractional Metric
|
|||||
|
PART
NO. |
TUBE O.D.
|
“C”
|
SQUARE
“D” |
PANEL
HOLE DIA. |
|
|
“A”
|
“B”
|
||||
| 08F42 |
1/4″ |
1/8″ |
2.07″ |
1/2″ |
21/64″ |
| 08F43 |
1/4 |
3/16 |
2.07 |
1/2 |
25/64 |
| 08F54 |
5/16 |
1/4 |
2.24 |
9/16 |
29/64 |
| 08F64 |
3/8 |
1/4 |
2.34 |
5/8 |
29/64 |
| 08F65 |
3/8 |
5/16 |
2.34 |
5/8 |
33/64 |
| 08F84 |
1/2 |
1/4 |
2.42 |
3/4 |
29/64 |
| 08F85 |
1/2 |
5/16 |
2.42 |
3/4 |
33/64 |
| 08F86 |
1/2 |
3/8 |
2.54 |
3/4 |
21/32 |
| 08F108 |
5/8 |
1/2 |
2.88 |
1 |
25/32 |
| 08F1210 |
3/4 |
5/8 |
3.30 |
1-1/4 |
1-1/32 |
| 08F1612 |
1 |
3/4 |
3.50 |
1-1/2 |
1-9/32 |
|
Metric
|
|||||
|
PART
NO. |
TUBE O.D.
|
“C”
|
SQUARE
“D” |
PANEL
HOLE DIA. |
|
|
“A”
|
“B”
|
||||
| 08M63 |
6mm |
3mm |
53mm |
13mm |
8.5mm |
| 08M64 |
6 |
4 |
53 |
13 |
10.5 |
| 08M86 |
8 |
6 |
57 |
14 |
12 |
| 08M106 |
10 |
6 |
60 |
16 |
12 |
| 08M108 |
10 |
8 |
60 |
16 |
13.5 |
| 08M126 |
12 |
6 |
61 |
19 |
12 |
| 08M128 |
12 |
8 |
65 |
19 |
13.5 |
| 08M1210 |
12 |
10 |
73 |
19 |
16.5 |
| 08M1912 |
19 |
12 |
78 |
32 |
26 |
| 08M2619 |
26 |
19 |
89 |
38 |
32.5 |
